Elite Automatic & Manual Flexion Chiropractic Table

SHIPPING
This item ships by truck. Please contact us before purchasing this table at 800.382.0300 or via e-mail at info@austinmedical.com for the freight charge on this table.

VIEW THE VIDEO AT THE BOTTOM OF THIS PAGE

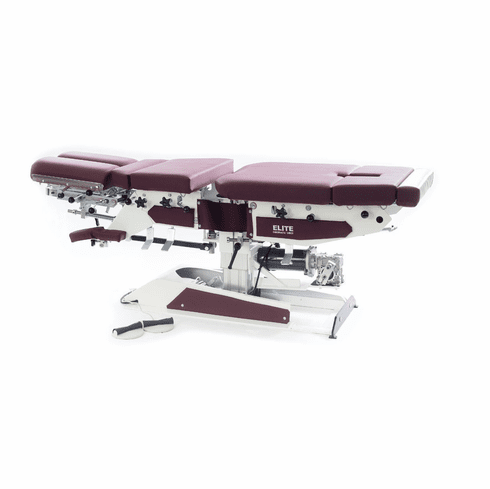

The Auto-Man-Flex Table is a motorized flexion table that offers variable degrees of flexion, or a standard adjusting table with your choice of drops. Available with optional electric elevation and distraction.

Features & Options

Automatic Flexion

Motorized Deep Flexion depth (22-25 degrees)

Electronic count down timer allows you to set the duration of flexion treatment with automatic shutoff when the time has elapsed.

Speed control dial allows you to finely adjust the Flexion speed

Manual Flex

Smooth range of Lateral Flexion (20 degrees)

Deep Flexion depth (22-25 degrees)

Able to perform figure 8 (ROM)

Pelvic cushion will drop in either a Flexed / Neutral / Extended position

Table can be locked while in a flexed position

Removable flexion control handle offers 3 different height adjustments and can be removed when not in use

Axial Rotation Upgrade

Manual rotation can be locked in any position.

User friendly locking handle.

Can be added to Manual Flexion, Auto Flexion or Auto Manual Flexion.

22 degree of rotation.



Electric Distraction Upgrade

Electric distraction of six inches

Upgrade available on all Flexion tables

* Please note when electric distraction feature is added, the pelvic cushion or knee break will not have a peaking mechanism when ordered on the following tables: Manual Flexion, Auto Flexion, HiLo Flexion and Auto Manual.

Elevation Upgrade

Motorized elevation adjust table for comfortable working position

Eight inches of elevation height adjustment controlled by a foot switch

Electric motor is powerful, quiet and smooth, rated to 230 kg. (500 lbs.)+

Headrest

Multi-directional headpiece – Tilt, Elevation and Spread

Cervical headpiece can be raised up to 6” above cushions

Cervical drop (forward motion oriented or straight down motion)

HP-FLEX Headpiece – Includes all the features of our standard headpiece plus flexion and traction

HP-FLEX-L Headpiece – Includes all the features of the HP-FLEX Headpiece plus lateral flexion

Drops

Easy drop foot cocking pedal on both sides of table

Pelvic cushion will drop in either a Flexed / Neutral / Extended position

Customizable with your choice of drops: cervical, thoracic (full or upper & lower), and pelvic

Thoracic drop available with abdominal breakaway feature

Easy access to adjustment controls

Cushion

21 inches 24 inches (option) wide table surface

Elevating thoracic and Pelvic/Lumbar sections (each tilt upward to 15 degrees)

Knee break (adjusts up 20 degrees, down 10 degrees) with ankle rest extension

Ankle rest extension

Variable cushion position

Construction

Table base durable powder coat finish in your choice of color

Sturdy welded steel construction

Low maintenance, dependable function

Automatic Flexion
Dial-in a treatment of motorized flexion for your patients. Quickly adjust treatment variations on the control unit, such as treatment length and flexion speed.

Manual Flexion
For more hands-on treatment, manual flexion enables the doctor to perform figure 8 ROM. The smooth lateral flexion range is 20 degrees and flexion depth of 22 to 25 degrees of depth. The table can be locked while flexed, and the removable flexion control handle offers three different height adjustments. The pelvic cushion on the table will drop in either the flexed, neutral or extended position.

Electric Elevation
Adjust your table to the ideal height with the tap of a footswitch. The table has an elevation range of eight inches, is rated to 230 kg. (500 lbs.)+

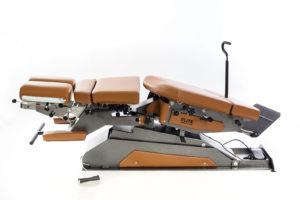

Axial Rotation
Rotate and lock the table in any position with the locking handle. Axial rotation provides up to 22 degrees of rotation.

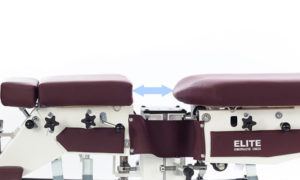

Electric Distraction
The tap of a footswitch delivers up to six inches of distraction.

Headpiece Upgrades
HP-FLEX Headpiece includes all the features of our standard headpiece plus flexion and traction, and the HP-FLEX-L Headpiece adds lateral flexion.

This item ships by truck.
For shipping charges:

You can contact us before the sale at 1-800-382-0300 or e-mail us at ausmed@aol.com for the freight charge on this table.
